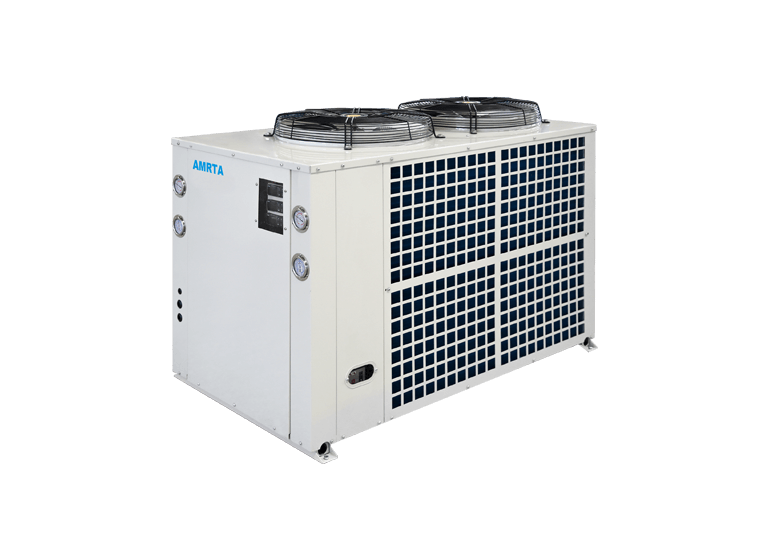

Plastics & Rubber Industry Chiller

Available in: Cooling

Capacity: 2hp~40hp

Refrigerant: R410A/R134A/R407C/R404A/R507

Application: Plastics & Rubber Industry, Brewery Beverage, Food Industry, Agriculture

The master module can work independently or together with up to 16 slave modules.



Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.



3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.



External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.



Evaporator built with high efficiency Shell and tube type heat exchanger, factory insulated with flexible close cell material.



Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.



Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.



Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.



Electric panel consist of:

compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit)

Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.



Optional

Paddle flow switch;

Metallic filter for hydraulic circuit;

Water pump;

Rubber antivibration mounting.

Heat recovery functions

Model Unit AW60 AW68 AW88 AW88 AW108 AW108 AW128
Capacity
Cooling capacity* kW 60 68 88 88 108 108 132
Ton 17.1 19.4 25.1 25.1 30.9 30.9 37.8
Cooling power input* kW 22.34 20.94 27.7 26.62 35.28 38.91 46.24
Compressor
Type / Scroll
Qty/refrigerant circuit Nr. 4/4 2/2 2/2 4/4 3/3 6/6 4/4
Axial fan
Quantity Nr. 2 2 2 2 3 3 2
Airflow m3/h 24000 24000 35800 35800 39000 39000 48000
Evaporator
Type / S T S S S S S
Water flow m3/h 10.3 11.7 15.1 15.1 17.2 17.2 22.7
Water side pressure drop *** kPa 43 43 42 42 41 41 41
Connect pipe DN 65 125 65 65 65 65 80
Noise level**** dB(A) 70 74 72 72 73 73 77
Dimensions
Length mm 1980 2110 2200 2200 3100 3100 2200
Width mm 1005 1080 1270 1270 1050 1050 1560
Height mm 1750 1900 2050 2050 1900 1900 2160
Net weight kg 700 800 950 920 1000 1000 1450

*Ambient temperature 35ºC; evaporator water in/out 12/7 ºC;

** Ambient temperature DB 7 ºC, WB 6 ºC; condenser water in/out temperature 40/45 ºC;

*** In the nominal water flow condition the pressure drop is between this range.

**** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a clear field.
