Medium & High E.S.P. Type Fan Coil Unit

Home

Product

Available in: Cooling, Heating

Air Flow: 1020m³/h~3400m³/h

Application: Office Building, Superstore, Hotel, Hospital, Bank, Apartment, Warehouse

CONSULT

MESSAGE

DOWNLOAD

>Features >Parameters >Catalog

Frame and structure

Panels and frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself.

Heating coil

The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.

Fan deck

The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

Drip tray

The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.

Filter

The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. The filter is installed on the units with plenum only.

Electrical connection box

All electric wires are connected to enclosed electrical terminal block, situated on the same side of the water connections.

Optional

3 speed switch

ON-BOARD THERMOSTART

Mechanical type for two pipe system exposed version use, working mode selection (OFF-Heating-Cooling), ventilation (HIGH-MED-LOW) and room temperature setting.

LCD thermostat with display

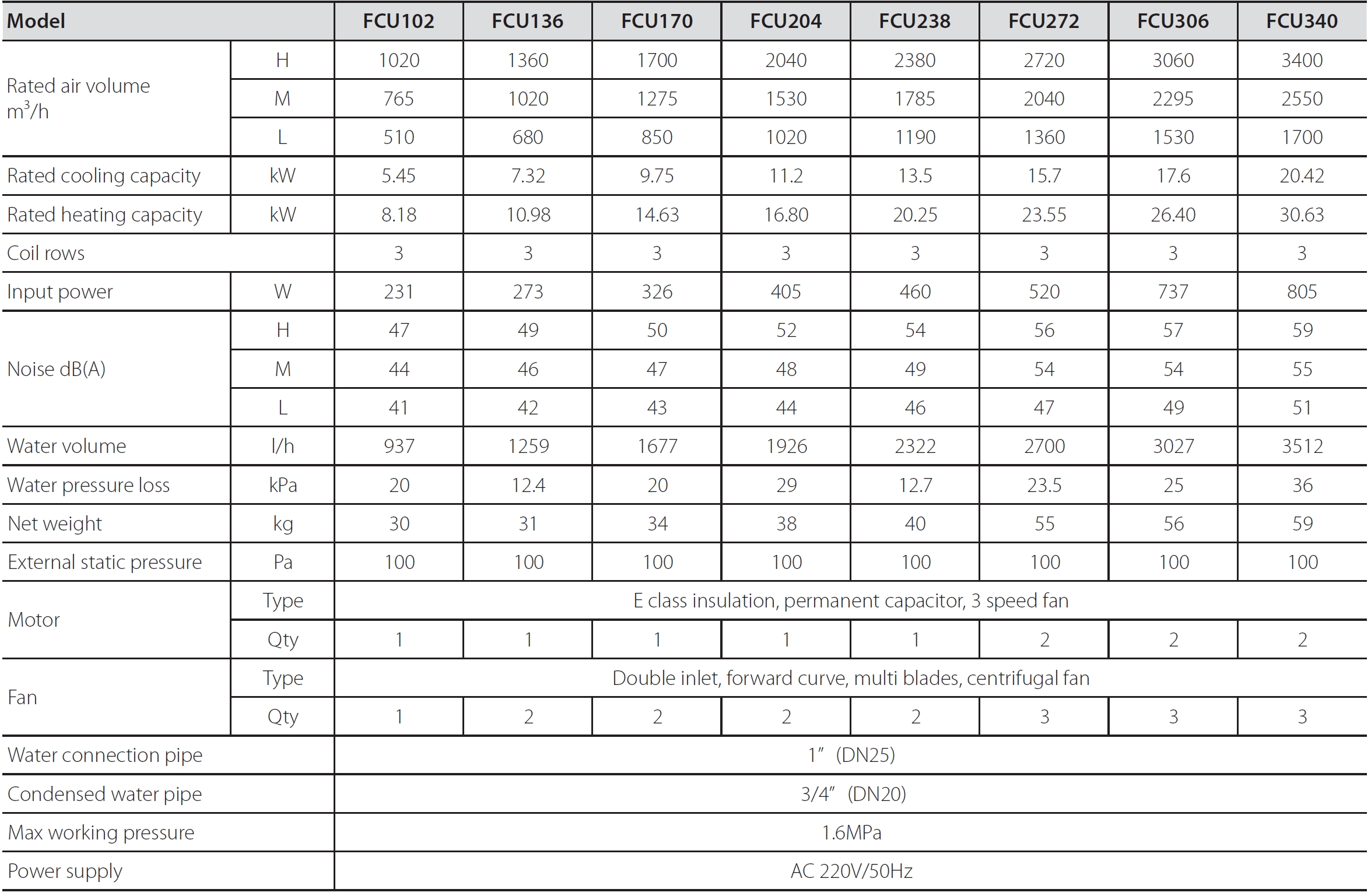

Medium ESP (2 pipes 3 rows, AC motor)

Remarks:
1. The performance data is according to the test result of horizontal concealed type without plenum.
2. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
3. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
