Durable construction
Casing of Amrta fan coil units shall be galvanized steel panel. And the condensate pan is treated by extruded seamless technology to prevent the leakage. Fire rated thermal insulation is attached to the condensate pan integrally. Construction of the units is sturdy and permanent.
High efficiency
Coils shall be fabricated by Φ9.25mm cooper tubes and hydrophilic aluminum fins. Tubes are expanded into the fins accurately to confirm the heat transfer efficiency. Fans shall be high airflow rate and low noise design. And brass headers of copper tubes well distribute water flow configuration to assure optimum heat transfer efficiency.
Low noise and operating cost
Fans shall be specially designed with over-sized galvanized multi-blade centrifugal wheel, operating with low noise, high static pressure and airflow rate. And hi-static, permanent split capacitor motors shall be factory balance tested for proof the high efficiency and quite operation.
Easy maintenance
Motors shall be fabricated with rolling bearing and quenched and tempered steel shaft with antirust treated. Three-speed or LCD thermostat is convenient to control the airflow and room temperature.
Low installation cost
Units shall be low-weight design. Drain pipes and wires are easy for connection. The water connection direction and air return are changeable according to the site requirements.
Specification
Coil: high efficiency heat transfer performance
Coils shall be manufactured by Φ9.25mm cooper tubes and sine-wave hydrophilic aluminum fins. Copper tubes are mechanically expanded to bond with aluminum fins. Considering water flow configuration and the performance of heat transfer, headers shall be fabricated of brass material.
Casing: reliable structure and elegant design
Casing shall be constructed by extruded galvanize steel panel (class 1), fitting for sturdy command.
Drain pan: special design for no leakage
Condensate drain pans shall be fabricated by high quality panel with punch forming and hot-dip baking paint treated. PE insulation with thickness of 7 mm is designed to tightly bond with drain pan with the benefit of easy manufacturing, anti-leakage and elegant feature eventually extending the drain pan life.
Motor: high efficiency and low power consumption
Motors shall consist of low noise permanent capacitor motors and total hermetic rolling bearing with permanent lubricated. The base of motor shall be isolated by rubber mount to minimize the vibration and operation noise.
Fans: low acoustic level
Fans shall be equipped with efficient, low noise, multi-blade centrifugal fan with oversized fan wheel, and shall be manufactured with galvanized steel panel for well dynamic balance performance.
Controller: facile and comfortable
Controller shall be facile with changeable speed of fans and friendly interface for users. AMT801 controller is used as optional allowing users to select operating mode and fan speed manually, to set the temperature by using the knob. Or AMT806 Series Thermostats is advanced control as optional using digital LCD display and EL Backlight, allowing users: to detect the room temperature with NTC sensor and compares it with the set-point for automatically keeping the room temperature stable; to adjust automatically 3-speed of fan; to save data and memory with output reliable by relay.
Options
Electric heater Removable aluminum filter
High static pressure fan Stainless steel condensate pan
Air return box (below return or back return) Controller: AMT801 controller
Fresh air inlet for air return box or AMT806 Series Thermostats
Advanced Option (Upgraded EC Fan Coil Unit)
Symbolizing by outstanding energy-saving effect, the EC fan coil unit saves more than 30% energy compared with traditional fan coil units at the same motor speed. When the fan motor operates at mid or low speed, the effect of energy-saving is more remarkable.
Intelligent control by standard smart thermostat, with microprocessor technology, effectively permits to achieve the stepless speed variation with automatic adjustment of motor charges and electrical dampers by detecting the ambient temperature and the set-point, significantly improve energy-saving, comfort and reliability.
Traditional fan coil unit is normally operating in 3-variable-speed with a range of ±2oC for room temperature fluctuation. The upgraded EC fan coil unit features continuous automatic adjustment technology and stepless speed variation, which controls the room temperature fluctuation under ±0.5oC.
Operating with small vibration and any electromagnetic noise ensures a quiet operation and improves the tranquility and comfort for room environment.
Using electronic commutation module, reducing the abrasion of electrical components, makes EC fan coil units with higher quality and longer life than traditional AC motor fan coil units.
Ceiling concealed type (AC motor, 2 pipes 3 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Ceiling concealed type (EC motor, 2 pipes 3 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Ceiling concealed type (AC motor, 4 pipes 3+1 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Ceiling concealed type (EC motor, 4 pipes 3+1 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.

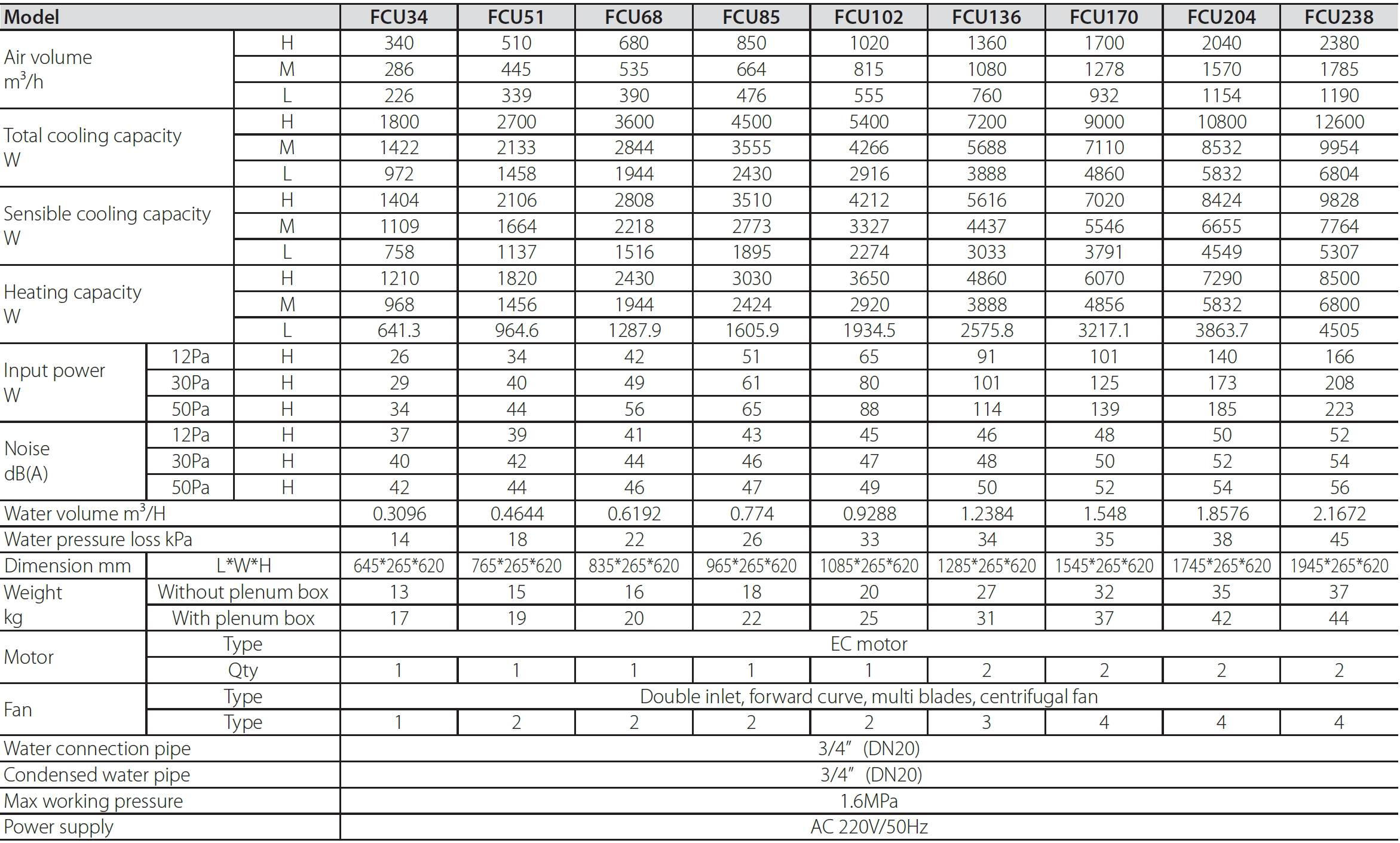

Concealed vertical type (AC motor, 2 pipes 3 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Concealed vertical type (EC motor, 2 pipes 3 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Concealed vertical type (AC motor, 4 pipes 3+1 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
Concealed vertical type (EC motor, 4 pipes 3+1 rows)
Remarks:
1. Cooling: inlet air temp. DB27 oC/WB19.5 oC, water inlet/outlet temp. 7 oC/12 oC.
2. Heating: inlet air temp. DB21 oC, water inlet temp. 60 oC; same water flow rate as for the cooling.
3. If with plenum box and filter, the ESP is 0 Pa.
4. Sound pressure level is the test value of the unit running at high speed in an anechoic or semi anechoic chamber, 1 meter below and front of the unit.
