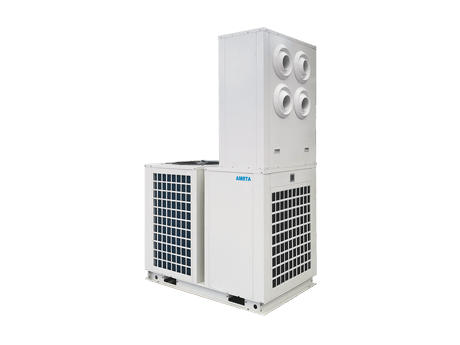

Camping Tent Air Conditioner

Available in: Cooling, Heating

Capacity: 14kW~100kW

Refrigerant: R410A/R134A/R407C

Application: Outdoor Events, Military, Exhibition, Temporary Buildings, Mobile Field Hospital & Medical













The tent packaged unit was developed primarily to provide air cooling in tents or transportable buildings. It not only provides greater comfort but also protects equipment and materials from hot weather damage.



The tent packaged unit is fitted with flexible duct and the unit itself must be located outside. The function of the tent packaged unit is based on a cooling circuit and powerful fans. The evaporator section contains the evaporator and a centrifugal fan, which draws warm internal air of the tent through the cold evaporator and blows out the cooled air through the side or the top of the unit. The condenser section contains two condenser coils and a large axial fan, returning the heat taken from the internal air to the outside atmosphere.



The tent packaged unit also have heat pump, can supply warm air into the tent in winter. Use the Panasonic scroll compressor, Amrta tent packaged unit can supply hot air at -10oC to 20oC.





● Self-contained package design

Easy installation with just connecting condensate drainage and electrical power supply, equipped with connecting plug.



● Special unit structure design

The tent wall can be installed in between of evaporator and condenser with the gap of 100-150mm.



● Plenum chamber

3 meter height with better air circulation and strong air flow.



● Digital controller

LED display, timer display, fan speed display, temperature display, error code display, mode display.



● Long distance air supply

High external static pressure (max 350pa) with 30 meter air throws.



● Easy maintenance

Air filter is easily dismantled and cleaned.



Structure

Model TA-14 TA-28 TA-42 TA-56 TA-84 TA-100
Power supply V~/PH/HZ 380/3/50
Cooling Capacity kW 14.0 28.0 42.0 56.0 84.0 100.0
HP 5 10 15 20 30 36
Btu/h 48000 96000 144000 192000 290000 340000
Power input kW 4.90 9.80 14.80 19.80 29.80 35.60
Running current A 8.7 17.5 26.1 34.9 51 71.7
Start current A 26.0 35.0 52 70 95 95
EER W/W 2.86 2.86 2.84 2.83 2.82 2.81
E.S.P Pa 150 150 250 250 350 350
Evaporator Fin material type   Hydrophilic louvered aluminum fin
Tube material type   Innergroover tube type
Number of row   3 4 4 4 5 5
Evaporator fan Type   High efficiency Centrifugal
Air discharge type   Top discharge
Rated ESP air flow m³/h 2500/1800 5000/3200 8000/5500 10000/7000 12000 15000
Condenser Fin material type   Hydrophilic louvered aluminum fin
Tube material type   Innergroover tube type
Number of row   2 4 3 3 4 4
Condensing fan Type   High efficiency axial
Air discharge type   Top discharge
Rated air flow m³/h 5000 11000 16000 22000 32000 35000
Numbers Pcs 1 1 2 2 2 2
Refrigerant Type   R410A
Unit dimension Width mm 1060 1060 1060 2200 2200 2200
Depth mm 1270 1700 1940 2360 2900 3600
Height mm 2210 2210 2660 2660 2660 2660
Unit noise level dB(A) 65 67 70 75 71 71
Unit weight kg 320 450 560 650 1680 1840

Notes:

Nominal cooling capacities are based on the following conditions:Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB;

Actual noise level may differ, depending on the room structure, etc, since these noise values are from an anechoic room.
